| Features: | Strong, Anti-Rust | Spring Wire Diameter: | 3.0MM, 4.0mm |
|---|---|---|---|
| Packing: | pallet or carton | Durability: | Highly durable and long-lasting |
| Material: | High-strength composite materials | Mesh Diameter: | 4.0mm Diameter Wire |
| Advantage: | Easy Assembled | Panel Size: | 0.61m x0.61m, also can be customized |
| Key Words: | Defensive barrier bastion | Weight: | Lightweight and easy to carry |
| Accesssories: | geotextile | Wire Diameter: | 4mm,5mm |
| Spring Diameter: | 4.0mm | Hole Size: | 76.2X76.2mm |
| ハイライト: | galvanized steel defensive barrier,4mm wire mesh wall,steel wire mesh barrier |
||
| Attribute | Value |
|---|---|
| Spring Wire Diameter | 3.0MM, 4.0mm |
| Features | Strong, Anti-Rust |
| Packing | pallet or carton |
| Durability | Highly durable and long-lasting |
| Material | High-strength composite materials |
| Mesh Diameter | 4.0mm Diameter Wire |
| Advantage | Easy Assembled |
| Panel Size | 0.61m x 0.61m, also can be customized |
| Weight | Lightweight and easy to carry |
| Accessories | geotextile |
| Wire Diameter | 4mm,5mm |
| Spring Diameter | 4.0mm |
| Hole Size | 76.2X76.2mm |
Also known as Rock basket retaining wall, defensive barrier, flood control barrier, etc. Made of steel welded mesh and lined with non-woven geotextile, can be filled with sand, earth, cement, or stone to serve as a defense wall or bunker. Widely used in special circumstances for safety protection.
| MODEL | HEIGHT | WIDTH | LENGTH | WEIGHT | No. of CELLS |
|---|---|---|---|---|---|
| KN 1 | 4'6"(1.37m) | 3'6"(1.06m) | 32'9"(10m) | 149(kg) | 9 (1*4+1*5cells) |
| KN 2 | 2'(0.61m) | 2'(0.61m) | 4'(1.22m) | 10(kg) | 2 (1*2 Cells) |
| KN 3 | 3'3"(1.00m) | 3'3"(1.00m) | 32'9"(10m) | 113(kg) | 10 (2*5 Cells) |
| KN 4 | 3'3"(1.00m) | 5'(1.52m) | 32'9"(10m) | 155(kg) | 10 (2*5 Cells) |
| KN 5 | 2'(0.61m) | 2'(0.61m) | 10'(3.05m) | 22(kg) | 5 (1*5 Cells) |
| KN 6 | 5'6"(1.68m) | 2'(0.61m) | 10'(3.05m) | 66(kg) | 5 (1*5 Cells) |
| KN 7 | 73"(2.21m) | 7"(2.13m) | 91'(27.74m) | 936(kg) | 13 (2*4+1*5cells) |
| KN 8 | 4'6"(1.37m) | 4'(1.22m) | 32'9"(10m) | 153(kg) | 9 (1*4+1*5cells) |
| KN 9 | 3'3"(1.00m) | 2'6"(0.76m) | 30'(9.14m) | 101(kg) | 12 (2*6cells) |
| KN 10 | 7'3"(2.21m) | 5(1.52m) | 100'(30.50m) | 1040(kg) | 20 (4*5cells) |
| KN 12 | 84"(2.13m) | 42"(1.06m) | 108(33m) | 813(kg) | 30 (6*5cells) |
| KN 19 | 108"(2.74m) | 42"(1.06m) | 10'5"(3.18m) | 198(kg) | 6 (1*6cells) |

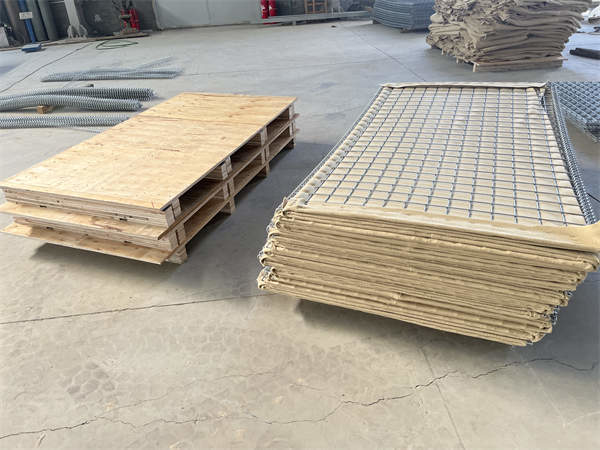

Assembled by Panel and Spring Wire. Foldable into one piece for loading and transportation.
Made from Hot Dipped Galvanized Wire for durability, lasting 10+ years in outdoor conditions.
Simply place in position, open, and fill with sand/earth. Can be completed by 2-3 persons.
Easily relocated and reused multiple times in different locations.
Damaged sections can be replaced by connecting new components.
