| 材料: | ステンレス・スチール・シート,HDP・ガルバンシートシート | 表面処理: | 熱浸し 鋳造 ステンレス |
|---|---|---|---|
| 人生を使う: | 約10年 | 応用: | 芝生鉄道 高速道路 農場 刑務所 など |
| かみそりのタイプ: | 単一かみそり | サンプル: | 無料 |
| タイプ: | BTO-22、BTO-16、BTO-18、CBT-65、CBT-30 | パッケージ: | 木製のパレット、防水紙 |
| ハイライト: | Ukraine galvanized razor wire fencing,BTO-16 barbed blade security wire,hot dipped razor barbed wire |
||

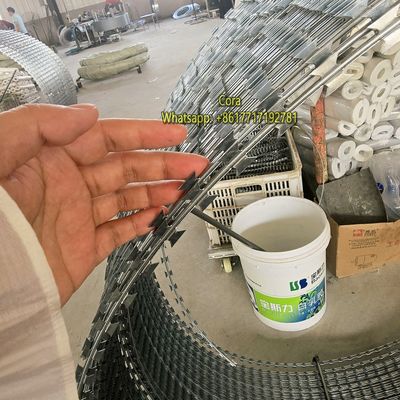

Ukraine Hot Dipped Galvanized BTO-16 Barbed Blade Razor Wire Security Fencing
Designed to meet Ukraine's specific security and climatic needs, the HBTO-16 Razor Wire Security Fencing is a high-performance perimeter protection solution.
Its hot-dipped galvanization forms a thick, uniform anti-corrosion layer, effectively withstanding Ukraine's variable weather—from damp winters to hot summers—preventing rust and extending service life significantly.
Unlike traditional barbed wire, the BTO-16 model features sharp, interlocking blade strips with precise spacing: each blade's acute edge delivers strong deterrence against unauthorized climbing or cutting, while the rigid structure maintains stability even under external impact.
This razor wire fencing is ideal for securing border zones, industrial facilities, military sites, and residential compounds across Ukraine, balancing robust protection with easy installation, making it a reliable choice for long-term security needs.
Specification:
| Reference Number |
Thickness (mm) |
Wire Dia (mm) |
Bard Length (mm) |
Bard Width (mm) |
Bard Distance (mm) |
| BTO-10 | 0.5±0.05 | 2.5±0.05 | 10±1 | 13± | 16±1 |
| BTO-12 | 0.5±0.05 | 2.5±0.05 | 12±1 | 15±1 | 26±1 |
| BTO-16 | 0.5±0.05 | 2.5-2.8 | 16±1 | 19±1 | 30±1 |
| BTO-18 | 0.5±0.05 | 2.5±0.05 | 18±1 | 15±1 | 33±1 |
| BTO-22 | 0.5±0.05 | 2.5±0.05 | 22±1 | 15±1 | 34±1 |
| BTO-28 | 0.5±0.05 | 2.5±0.05 | 28±1 | 15±1 | 53+1 |
| BTO-30 | 0.5±0.05 | 2.5±0.05 | 30±1 | 21±1 | 54±1 |
| CBT-60 | 0.5±0.05 | 2.5±0.05 | 60±1 | 32±1 | 100±1 |
| CBT-65 | 0.5±0.05 | 2.5±0.05 | 65±1 | 21±1 | 100±2 |
Razor Barbed Wire Coil and Unit Loops
| Outside Diameter | No.of Loops | Standard Length Per Coil | Type | Notes |
| 450mm | 33 | 8M | CBT-65 | Single coil |
| 500mm | 41 | 10M | CBT-65 | Single coil |
| 700mm | 41 | 10M | CBT-65 | Single coil |
| 960mm | 53 | 13M | CBT-65 | Single coil |
| 500mm | 102 | 16M | BTO-10.15.22 | Cross type |
| 600mm | 86 | 14M | BTO-10.15.22 | Cross type |
| 700mm | 72 | 12M | BTO-10.15.22 | Cross type |
| 800mm | 64 | 10M | BTO-10.15.22 | Cross type |
| 960mm | 52 | 9M | BTO-10.15.22 | Cross type |
Workshop:

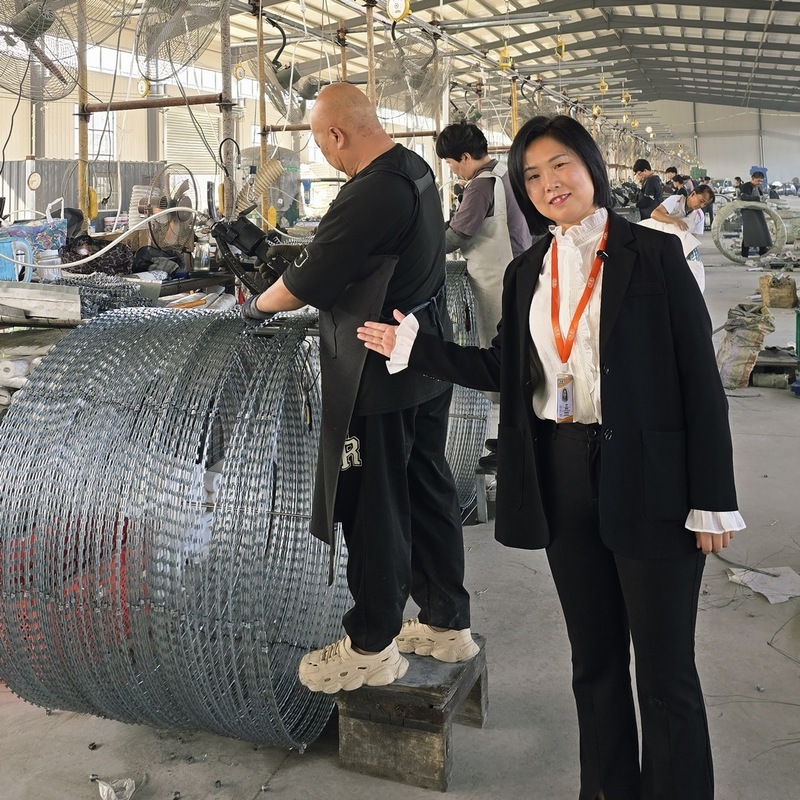

Above is our No.3 workshop, producing BTO-16, Packed with wooden box. daily output is 1/40HQ.
Packing & Delivery:
1. sheet is packed by pallet or strapped into bundle.
2. sheet in carton or wooden case.
3. rolls in water-proof paper+plastic film.
Details of Razor Wire:
