商品の詳細:
お支払配送条件:
|
| 材料: | 炭素鋼ワイヤー | メッシュワイヤー: | 4.0 mm |
|---|---|---|---|
| スプリングワイヤー: | 4.0 mm | 表面処理: | ヘビーホットディップ亜鉛メッキ |
| GeoTextile: | 250-300gsm サンドカラー、グリーンカラー | 寿命: | 25歳以上 |
| 保証: | 3年以上 | ||
| ハイライト: | welded mesh gabion basket,military fortification defensive barrier,flood control hesco barrier |
||

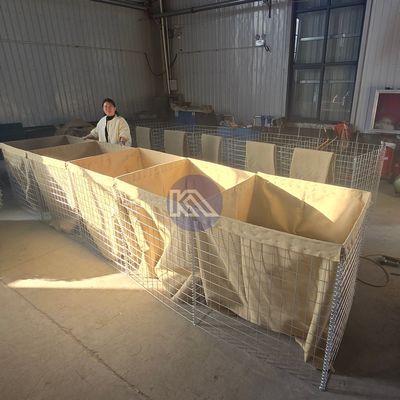

Defensive Hesco Barrier Mil 1- Mil 19 Welded Mesh Gabion Basket For Flood Control And Military Fortifications
Hesco Barriers :
The HESCO barrier castles were initially invented by British entrepreneur Jimi Heselden, a former miner, in the 1980s. In 1989, he established HESCO Bastions to promote and sell his patented product.
The HESCO barrier castles were originally designed for the rapid construction of flood barriers. For instance, during Hurricane Katrina and Hurricane Rita in New Orleans in 2005, a large number of HESCO barrier castles were used to resist the flooding from heavy rains. Similarly, in June 2008, during the floods in the American Midwest, an 8,200-meter-long barrier was constructed using HESCO barrier castles. In March 2009, a 10,700-meter-long HESCO flood barrier was constructed in Fargo, North Dakota.
( mesh gabion box ) are good Solution for emergency flood control,shelter house,military defence wall.
Army Defensive Hesco Barrier is made of galvanized welded mesh,spring with other fittings,can be filled with sand,earth,cement,stone,can be used in separate cell or some cells joint together.
Finish:hot dipped galvanized,galfan coated
Hesco Barriers Specification :
1) wire diameter: 4mm-5mm
2) hole: 3''x3'',(76.2mm x 76.2mm)
3) hesco size: mil 1 - mil 19,other size can be produced as requested.
4) geotextile: in non-woven geotextile,color can be green,beige-sand color.
Army Defensive Hesco Barrier Specification
| Model | Height | Width | Length | Internal Cells |
| KN-1(Mil 1) | 54”(1.37m) | 42”(1.06m) | 32’9”(10m) | 5+4=9 cells |
| KN-2(Mil 2) | 24”(0.61m) | 24”(0.61m) | 4’(1.22m) | 2 cells |
| KN-3(Mil 3) | 39”(1.0m) | 39”(1.0m) | 32’9”(10m) | 5+5=10 cells |
| KN-4(Mil 4) | 39”(1.0m) | 60”(1.52m) | 32’9”(10m) | 5+5=10 cells |
| KN-5(Mil 5) | 24”(0.61m) | 24”(0.61m) | 10’(3.05m) | 5 cells |
| KN-6(Mil 6) | 66”(1.68m) | 24”(0.61m) | 10’(3.05m) | 5 cells |
| KN-7(Mil 7) | 87”(2.21m) | 84”(2.13m) | 91’(27.74m) | 5+4+4=13 cells |
| KN-8(Mil 8) | 54”(1.37m) | 48”(1.22m) | 32’9”(10m) | 5+4=9 cells |
| KN-9(Mil 9) | 39”(1.0m) | 30”(0.76m) | 30’(9.14m) | 6+6=12 cells |
| KN-10(Mil 10) | 87”(2.21m) | 60”(1.52m) | 100’(30.5m) | 5+5+5+5=20 cells |
| KN-11(Mil 11) | 48”(1.22m) | 12”(0.30m) | 4’(1.22m) | 2 cells |
| KN-12(Mil 12) | 84”(2.13m) | 42”(1.06m) | 108’(33m) | 5+5+5+5+5+5=30 cells |
| KN-19(Mil 19) | 108”(2.74m) | 42”(1.06m) | 10’5”(3.18m) | 6 cells |
Hesco Barriers Application
1. Environmental Barriers,Flood Barriers, a reliable, easy-to-deploy and robust solution for emergency flood protection or long-term wetland restoration
2. Defensive Barriers: Protecting both military and civilian personnel in dangerous environments demands defensive solutions that are secure, reliable and readily available.
3. Protective Barriers: Protect your workforce,Create a secure refuge for your employees by
providing protection for up to eight people with Accommodation Bunker.
4. Rockface: transforms the highly effective wall into an aesthetically pleasing structure ideal for customer-facing perimeter security where a more benign appearance is required.
